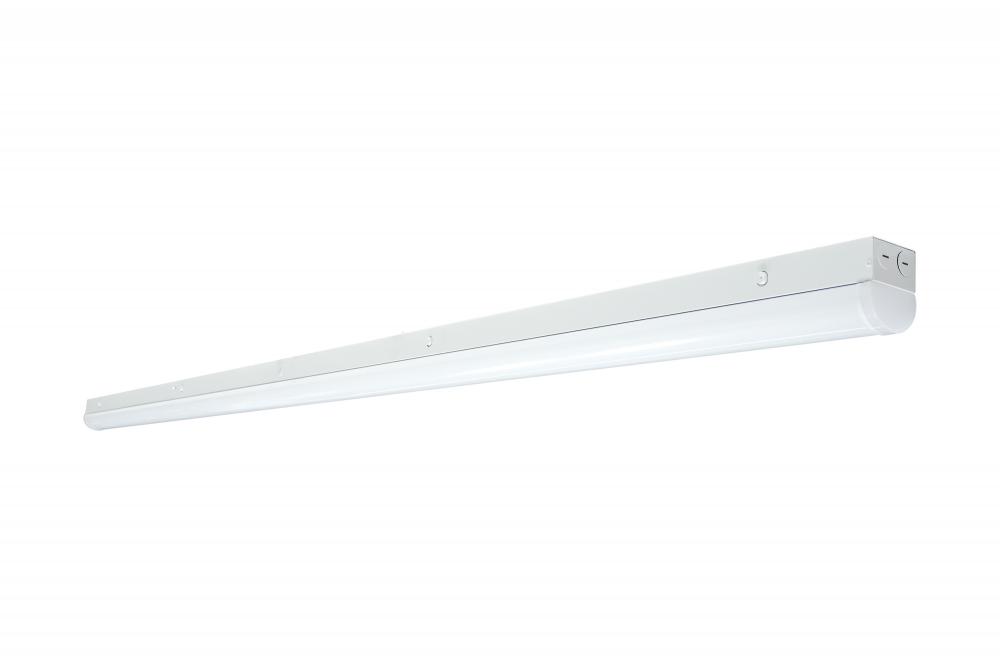

82 Watt; 8 ft. LED; Linear Strip Light; CCT Selectable; 120-347 Volt; White Finish (A34JU)

82 Watt; 8 Foot LED; Linear Strip Light; CCT Selectable; 120-347 Volt; White Finish

Product Specification

Item #

A34JU

Dimensions

Height: 3.27"

Width: 2.95"

Additional product details

Category

Linear Strip

Sub Category

Strip Fixture

Style

Utility

Additional Info

Other DLC Listings: PLTRVDFB3IUR, Standard, Direct Linear Ambient Luminaires.

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Neutral White to Daylight

Dimmable

Yes-Dimmable

Each Height

5.32

Each Length

98.03

Each Width

5.2

Length

Lumens

10400L-10800L

Tariff Code

9405.11.6010

Warranty

5-Years

Amps

0.683-0.236A

ANSI Base

Integrated

BAA Compliant

Beam Angle

120

B_U_G_Rating

B3-U4-G3

CA Prop-65

Lead

CCT Selectable

Yes

CEC Terse

Lawful for sale in California

Connection

Hardwire

Country Of Origin

Vietnam

CRI

80+

Dimmable Down To

100 to 10 percent

Dimmable Function

0-10V Dimming Only

DLC Classification

Premium; Standard

DLC Primary Use

Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires

Each Cube

1.5694

Each Quantity

Efficacy

126.83/129.27/131.71 LPW

FCC Compliant

Yes

Feature 1

CCT Selectable 3500K/4000K/5000K

Feature 2

120V-347V

Feature 3

3KV Surge Protection

Feature 4

0-10V Dimmable

Feature 5

80 CRI

Feature 6

50,000 Hours

Feature 7

5 Year warranty

Finish Family

White

Flicker Free

Yes

Has Camera

Has Driver

Yes

Has Emergency Battery

HID Equiv

150W

Incandescent Equivalent

550W

Indoor Outdoor

Indoor

Installation Notes

Maximum connected units are 7. If dimming, the dimmer max load will dictate how many units can be on the run/control.

IOT Enabled

IP Rating

IP20

JA8 Compliant

Lens Finish

White

Lens Material

Polycarbonate (PC)

Long Description

Introducing SATCO NUVO's newest addition to our LED strip lights. SATCO NUVO's 65-703 is a new cULus listed 82-Watt high lumen 8-foot strip addition is CCT selectable (3500K/4000K/5000K) just like its wattage and CCT selectable counter parts (65-70

Material

Steel

Mounting Diameter

4.75

Mounting Procedure

Ceiling/Wall

NSF Approved

Operating Frequency

50/60Hz

Operating Temp

-20C (-4F) to +60C (+140F)

Order In Multiples Of

Pack Type

Box

Photocell

Optional Add-On

Power Factor

0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Introducing SATCO NUVO's newest addition to our LED strip lights. This new cULus listed 82-Watt high lumen 8-foot strip addition is CCT selectable (3500K/4000K/5000K) just like its wattage and CCT selectable counter parts (65-701 and 65-702.) It has a

Safety Listing

cULus - Listed

SDS class

LED_Fixture

Short Description

8'LINEAR STRIP WHITE FINISH

Sloped Ceiling Compatible

Yes

Specification Notes

Add on sensors, 86-202 and 86-211, are only rated for 120-277 Volt

Temperature (CCT)

3500K/4000K/5000K

Title 20 Compliant

Exempt

Title 24 Compliant

Total Harmonic Distortion

15%

Wattage Selectable

Weight Lb.

6.84

Finish

Additional options that would change other selections
